Cornelis Omni-Path Express Director Class Switches

Cornelis Omni-Path Express Director Class Switches are ideal for interconnecting mid-sized clusters and for providing the core of large clusters.

With enterprise-class reliability, availability, and serviceability (RAS) features, Cornelis Director Class Switches provide up to 288 ports in 7U and up to 1152 ports in 20U, delivering full bisectional bandwidth per port with sub-340 ns latency. These switches incorporate advanced technologies that maximize cluster scalability and message rate while minimizing average and tail latency critical to application performance.

  • Download Product Brief Download
  • Enquire Now Arrow - Right

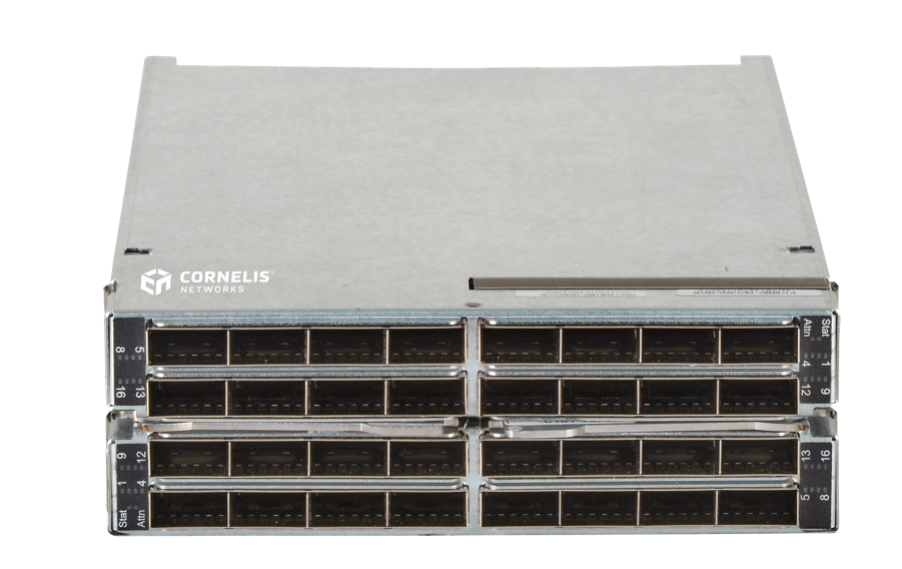

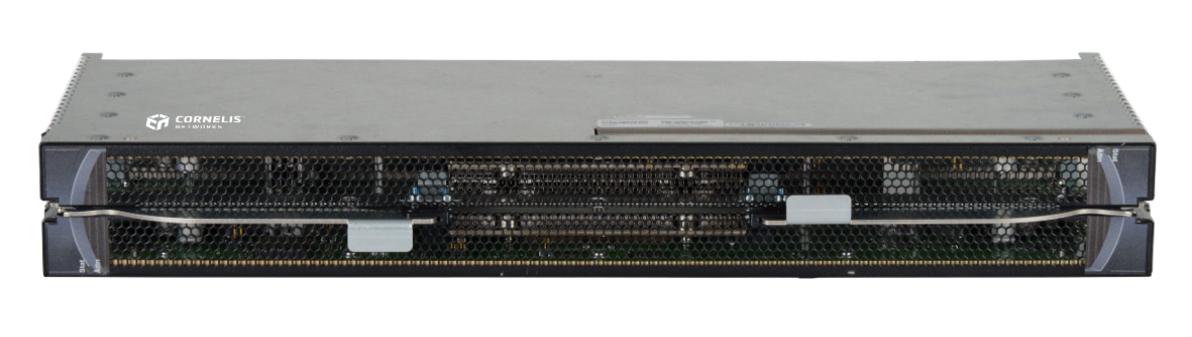

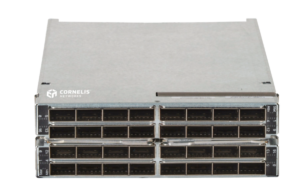

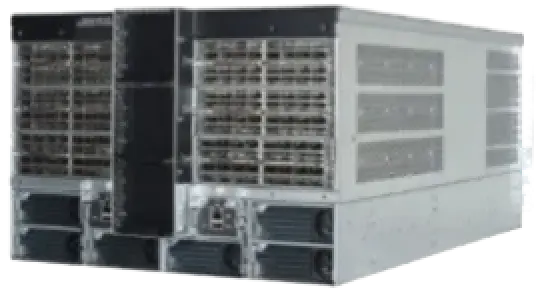

  • Front view of a Cornelis Omni-Path Express Director Class Switch Front view of a Cornelis Omni-Path Express Director Class Switch Front view of a Cornelis Omni-Path Express Director Class Switch (Leaf Module) Front view of a Cornelis Omni-Path Express Director Class Switch (Spine Module)
    Drastically Improve Your Scalability
  • Download Product Brief Download
  • Enquire Now Arrow - Right
  • Cornelis Networks provides the industry's leading director class switch family.

    Omni-Path Express Director Class Switches cost-effectively deliver high bandwidth and use advanced technologies to meet the key challenges to application performance, maximizing cluster scalability and message rate while minimizing average and tail latency.

    Cornelis Omni-Path Express scale-out interconnect

    Unprecedented demands on the scale-out interconnect are being driven by advances in artificial intelligence, high performance data analytics, and traditional modeling and simulation environments, coupled with extremely capable processing and storage infrastructures.

    Cornelis Omni-Path Express is the next generation of high performance fabrics, a proven hardware foundation combined with the OpenFabrics Interfaces (OFI) software framework, that delivers the industry’s lowest latency, highest message rate, and best collectives performance, all at the industry’s lowest CPU utilization.

    Accelerated application performance at scale

    Cornelis Omni-Path Express Director Class Switches deliver full bidirectional bandwidth per port, providing up to 288 100 Gbps ports in 7U and up to 1152 ports in 20U.

    Cornelis Omni-Path Express Director Class Switches are ideal for interconnecting mid-sized clusters and for providing the core of large clusters.

    The Omni-Path Express Director Class Switches ensure optimal application performance by delivering key features for efficiency, including dynamic adaptive routing and congestion control. These features are complemented by a unique sub-link layer architecture that enables Packet Integrity Protection (zero latency protection against bit transmission errors) and Traffic Flow Optimization (pausing the transmission of a lower priority packet in favor of a higher priority packet).

    These features, together with advanced Virtual Fabrics support, provide the unique interconnect capabilities to deliver industry-leading application performance and manageability at scale.

    Benefits

    • Accelerated application performance at scale

    • Industry leading best price-performance

    • Advanced sub-link layer capability eliminating link protection and tail latency penalties

    Director Class Switch – Leaf Module

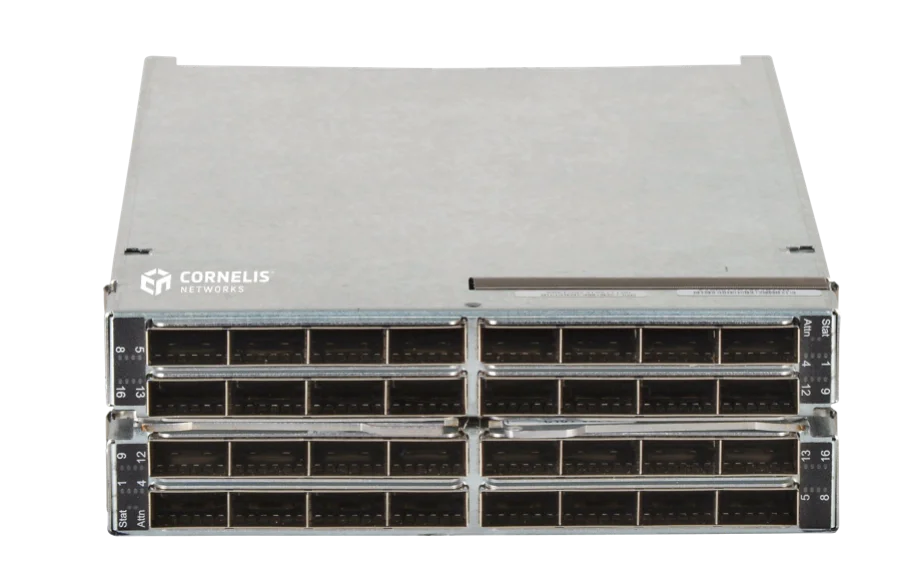

    Front view of a Cornelis Omni-Path Express Director Class Switch (Leaf Module)

    Director Class Switch – Spine Module

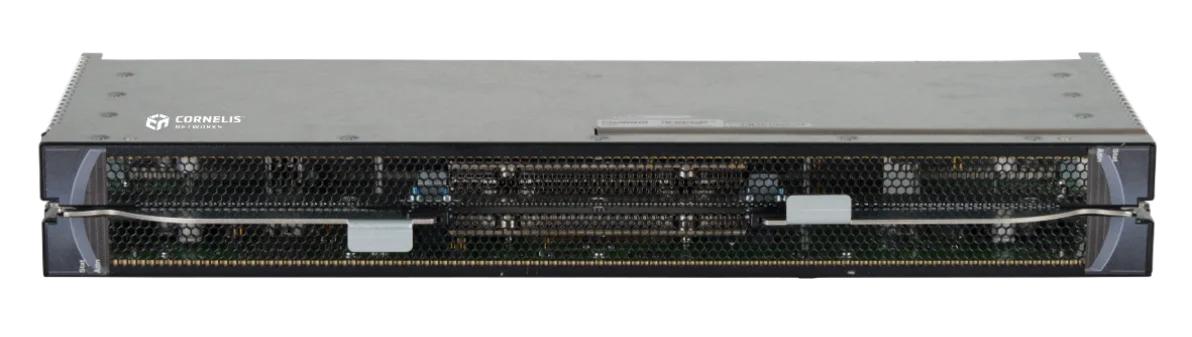

    Front view of a Cornelis Omni-Path Express Director Class Switch (Spine Module)

    Key Features

    Performance

    • 288 x 100 Gbps ports (57.6 Tbps) in 7U

    • 1152 x 100 Gbps ports (230.4 Tbps) in 20U

    • Sub-340 ns post-protection switch latency

    Advanced Features

    • Dynamic Adaptive Routing

    • Packet Integrity Protection

    • Traffic Flow Optimization

    • Dynamic Lane Scaling

    • Congestion Control

    • Virtual Fabrics

    Highly Optimized Design

    • Redundant power and fans

    • Redundant management

    Feature100SWD24100SWD06
    100 Gbps ports (max)1152288
    Total System Bandwidth (bidirectional)28.8 TB/s7.2 TB/s
    Chassis Height20U (+1U support shelf)7U (+0U support shelf)
    Dimensions (mm)447 x 889 x 749447 x 310 x 749
    Weight (fully configured)637.0 lb / 288.9 kg209.1 lb / 94.9 kg
    Leaf Modules (max)246
    Spine Modules (max)12 (48-port Leaf)
    8 (32-port Leaf)
    3 (48-port Leaf)
    2 (32-port Leaf)
    Fan Modules93
    Management Modules (standard/redundant)1/21/2
    Power Supplies (min/DC/AC redundancy)6/7/122/3/4
    Power (kW, typical, fully loaded, power class 2 AOC)8.52.2
    Power (kW, max, fully loaded, power class 2 AOC)12.73.3
    CablesQSFP28 – QSFP28 used with 32-port Leaf
    QSFP-DD – 2x QSFP28 used with 48-port Leaf
    QSFP28 – QSFP28 used with 32-port Leaf
    QSFP-DD – 2x QSFP28 used with 48-port Leaf

    Item Name Item Number Item Description
    100SWD06B1N945676Cornelis Omni-Path Director Class Switch 100 series 6 Slot Base 1MM
    100SWD24B1N945677Cornelis Omni-Path Director Class Switch 100 series 24 Slot Base 1MM
    100SWDLF32Q945777Cornelis Omni-Path Director Switch Leaf Module 100 Series 32 port
    100SWDLF48D961904Cornelis Omni-Path Director Switch Leaf Module 100 Series 48 port
    100SWDSPINE945778Cornelis Omni-Path Director Switch Spine Module 100 Series
    100SWDMGTSH945776Cornelis Omni-Path Director Switch Management Module 100 Series
    100SWDFAN01945779Cornelis Omni-Path Director Switch Fan Module 100 Series
    100SWDPS001945780Cornelis Omni-Path Director Switch Power Supply Module 100 Series

    Safety

    US/Canada

    cTUVus NRTL 62368-1

    Europe

    TUV SUD EN 62368-1

    International

    CB Scheme: IEC 60950/62368-1

    Operating Conditions

    Temperature

    Operating: 5° to 40° C<br>
    (derated 1C/175m above 900m)<br>
    Storage: -40° to 70° C

    Humidity

    Operating: 5% to 85% non-condensing<br>
    Storage: 5% to 95% non-condensing

    Altitude

    Operating: 0 – 3,200m<br>
    Storage: 0 – 10,000m

    Emissions/Immunity

    US/Canada

    FCC Part 15, Subpart B, Class A,
    ICES-3(A)/NMB-3(A)

    Europe

    EN55032 Class A, EN55035, EN55024

    Japan

    VCCI, Class A

    AS/NZ

    AS/NZ CISPR 32, Class A

    Korea

    RRA/KC (KN32, KN35), Class A

    Taiwan

    BSMI (CNS 13438 Class A, CNS 14336, CNS 15663)

    Environmental

    RoHS

    RoHS II Directive 2011/65/EU

    REACH

    (EC) No 1907/2006
