Cornelis Omni-Path Express Edge Switches

Cornelis Omni-Path Express Accelerated Host Fabric Adapters are designed to provide a perfect semantic match between the requirements of real-world HPC applications and the scale-out fabric, maximizing performance at scale.

Cornelis Omni-Path Express adapters come in PCI low profile and Open Compute Project (OCP) 3.0 form factors and deliver scalable bandwidth in increments of 100 Gbps, 250 million MPI messages per second, and sub-microsecond MPI latency.

Other advanced performance features include dispersive routing, congestion control, a unique sub-link layer architecture that enables Packet Integrity Protection (zero latency protection against bit transmission errors), and Virtual Fabrics support.

  • Download Product Brief Download
  • Enquire Now Arrow - Right

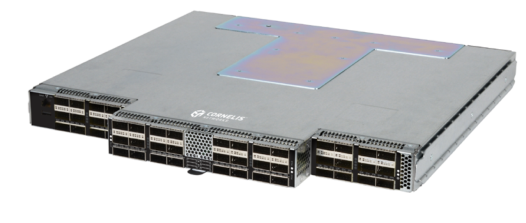

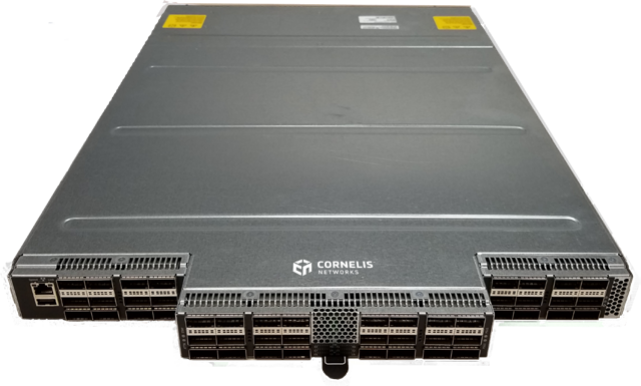

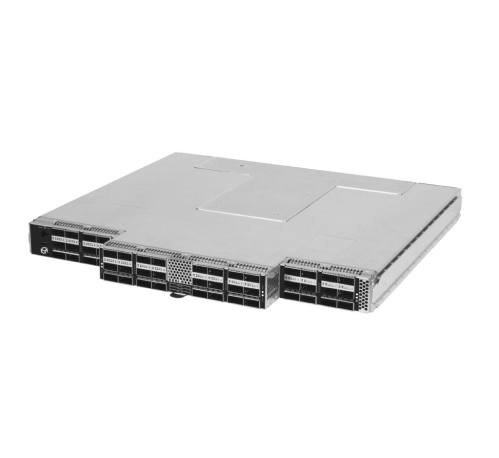

  • Front view of the Cornelis Omni-Path Express Edge Switches Front view of the Cornelis Omni-Path Express Edge Switches
    Drastically Improve Your Scalability
  • Download Product Brief Download
  • Enquire Now Arrow - Right
  • Cornelis Networks provides the industry’s leading edge switch.

    Omni-Path Express Edge Switches costeffectively deliver high bandwidth and use advanced technologies to meet the key challenges to application performance, maximizing cluster scalability and message rate while minimizing.

    Cornelis Omni-Path Express scale-out interconnect

    Cornelis Omni-Path Express scale-out interconnect Unprecedented demands on the scale-out interconnect are being driven by advances in artificial intelligence, high performance data analytics, and traditional modeling and simulation environments, coupled with extremely capable processing and storage infrastructures.

    Cornelis Omni-Path Express is the next generation of high performance fabrics, a proven hardware foundation combined with the OpenFabrics Interfaces (OFI) software framework, that delivers the industry’s lowest latency, highest message rate, and best collectives performance, all at the industry’s lowest CPU utilization

    Accelerated application performance at scale.

    Cornelis Omni-Path Express Edge Switches provide forty-eight 100 Gbps ports, delivering full bidirectional bandwidth per port.

    Cornelis Omni-Path Express Edge Switches are very versatile, as the only switch in small clusters, the first tier switch in larger clusters, and the network core in intermediate clusters.

    The Omni-Path Express Edge Switches ensure optimal application performance by delivering key features for efficiency, including dynamic adaptive routing and congestion control.

    These features are complemented by a unique sub-link layer architecture that enables Packet Integrity Protection (zero latency protection against bit transmission errors) and Traffic Flow Optimization (pausing the transmission of a lower priority packet in favor of a higher priority packet).

    These features, together with advanced Virtual Fabrics support, provide the unique interconnect capabilities to deliver industry leading application performance and manageability at scale.

    Benefits

    • Accelerated application performance at scale

    • Industry leading best price-performance

    • Advanced sub-link layer capability eliminating link protection and tail latency penalties

    Key Features

    Performance

    • 48 x 100 Gbps ports in 1U

    • 9.6 Tbps aggregate switch throughput

    • Sub-110 ns post-protection switch latency

    Advanced Features

    • Dynamic Adaptive Routing

    • Packet Integrity Protection

    • Traffic Flow Optimization

    • Dynamic Lane Scaling

    • Congestion Control

    • Virtual Fabrics

    Highly Optimized Design

    • Redundant power and fans

    • Reversible air flow

    • Optional internal management

    Switch Features

    • Omni-Path Switch Silicon 100 Series 48-Port ASIC

    • 100 Gbps bidirectional bandwidth per port

    • Virtual lanes: Configurable from one to eight VLs plus one management VL

    • Configurable MTU size of 2 KB, 4 KB, 8 KB, or 10 KB

    • Maximum multicast table size: 8192 entries

    • Maximum unicast table size: 49151 entries

    • QSFP28 Quad Small Form Factor Pluggable cabling

    • Supports passive copper and active optical cables

    Benefits

    • Subnet Management Agent (SMA)

    • Performance Management Agent (PMA)

    • Serial Console through USB Serial Port

    • Optional internal management capability

    • NTP, SNMP, and LDAP support

    • Chassis Management via CLI and GUI

    • FastFabric Toolset and FM GUI support

    100 Gbps ports48
    Total System Bandwidth (bidirectional)9.6 Tbps (1.2 TB/s)
    Chassis Dimensions (w x h x d)Fixed Edge: 19” rack mountable, 1U chassis (441 mm x 43.7 mm x 438 mm)
    Hot Swap: 19” rack mountable, 1U chassis (441 mm x 43.7 mm x 671 mm)
    WeightFixed Edge: 6.1 kg (unmanaged), 6.4 kg (managed)
    Hot Swap: 7.7 kg (unmanaged), 8.0 kg (managed)
    Configuration OptionsForward (P/S-to-I/O) or Reverse (I/O-to-P/S)
    Air Flow Management Module
    Power (Typ/Max)189/238 W (Using direct attach copper cables)
    285/330 W (Using 2W QSFP active optical cables)
    Input Range100-240 VAC 50-60 HZ

    Item Name Item Number Item Description
    100SWE48QF2948588Cornelis Omni-Path Edge Switch 100 Series 48 Port Managed Forward 2 PSU
    100SWE48UF2948678Cornelis Omni-Path Edge Switch 100 Series 48 Port Forward 2 PSU
    100SWE48QFH955016Cornelis Omni-Path Edge Switch 100 Series 48 Port Managed Forward Hot Swap
    100SWE48UFH955213Cornelis Omni-Path Edge Switch 100 Series 48 Port Forward Hot Swap
    100SWEADKIT950880Cornelis Omni-Path Edge Switch Air Duct Kit 100 Series (optional accessory)
    100SWEHSFTF955106Cornelis Omni-Path Edge Switch Hot Swap Fan Tray Forward 100 Series
    100SWEHSPSF955107Cornelis Omni-Path Edge Switch Hot Swap Power Supply Forward 100 Series
    100SWEIKIT1945820Cornelis Omni-Path Edge Switch Installation Kit 100 Series (replacement kit)

    Safety

    US/Canada

    cTUVus NRTL 62368-1

    Europe

    TUV SUD EN 62368-1

    International

    CB Scheme: IEC 60950/62368-1

    Operating Conditions

    Temperature

    Operating: 0° to 40° C<br>
    (derated 1C/175m above 900m)<br>
    Storage: -40° to 70° C

    Humidity

    Operating: 5% to 85% non-condensing<br>
    Storage: 5% to 95% non-condensing

    Altitude

    Operating: 0 – 3,200m<br>
    Storage: 0 – 10,000m

    Emissions/Immunity

    US/Canada

    FCC Part 15, Subpart B, Class A,
    ICES-3(A)/NMB-3(A)

    Europe

    EN55032 Class A, EN55035, EN55024

    Japan

    VCCI, Class A

    AS/NZ

    AS/NZ CISPR 32, Class A

    Korea

    RRA/KC (KN32, KN35), Class A

    Taiwan

    BSMI (CNS 13438 Class A, CNS 15663)

    Environmental

    RoHS

    RoHS II Directive 2011/65/EU

    REACH

    (EC) No 1907/2006
